SeeThru LED

We are passionate about what we do

Talk to us. We'd like to work with you.


High Transparency

Over 60% transparency, good daylighting
and delicate decoration

Application

1

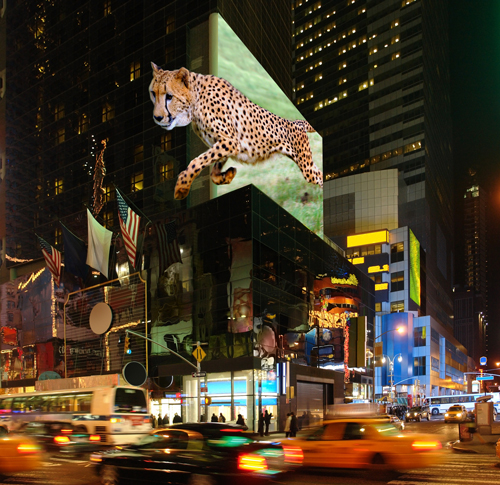

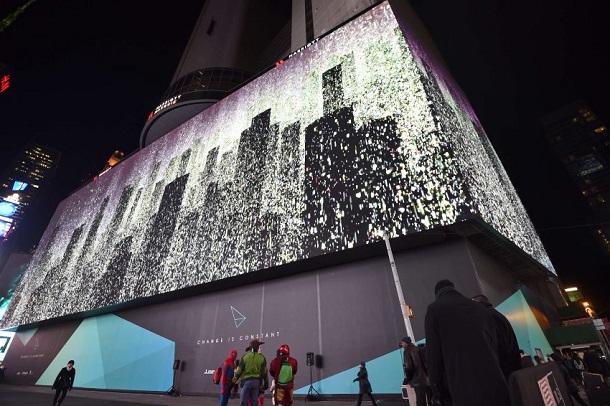

Building Facade

Without viewing interference from inside, achieves perfect combination of wall and screen with stunning display image and smart interaction.
2

Commercial events and show cases

Applied to interior commercial events such as retail stores, exhibition halls, airports, high-speed rail way stations and theaters, LED transparent screen creates a comfortable advertising environment to get customer’s attention as much as possible.
3

Rental Events

Exquisite design with die-casting aluminum, slim, lightweight, easy and quick to assemble and disassemble. Advance video processing produces crystal-clear, detailed images with smooth motion reproductions.
4

Abnormal shapes Architectures

Flexible transparent LED video walls can build any curved, circle, round, square, abnormal shapes freely.

Specification

SPECIFICATION

INDOOR

OUTDOOR

Pixel Configuration SMD 2121/1921 SMD 2121/1921
LED Pixel Pitch(mm) 7.81 P8.33mm
Module Resolution(W*H) 64x32 dots / 128x32 dots 12.5x8.333
Module Size(mm) (W*H*D) 500x250x24 mm / 1000x250x24mm 1000×500mm×88mm
Module Weight(Kg) 0.8 kg / 1.6 kg 7.5kg
Transparent 60% 76%
Pixel Density 16,384 (dot/m) 9,600 Pixel/m2
Brightness 800-1000/2000-2800 CD/m2 >6500 nits
Thickness of the screen 27mm TBA
LED perating Hours 100,000 hours 100,000 hours
IP Rating IP 30 IP55
Refresh Rate 1000 - 1500 Hz <3%
Max Power Consumption(W/) < 900 W/m2 400 W/m2
Average Power Consumption((W/) < 300W/m2 150 W/m2

Get our SeeThru LED product at a price you won’t believe! Join Toshi Channel Partner Program
